Flyash Brick Technology

Fly Ash Bricks Technology





FLY ASH BRICK FEATURES
Sr. No.
Particulars
Specifications
Remarks
1. Weight of Bricks 2.75 – 3.25 Kg / Brick Depend upon Sand quality
2. Compressive Strength 50-80 kg/cm2 -
3. Water Absorption 12-16% Depend upon product recipe
RAW MATERIALS
Sr. No.
Particulars
Specifications
1. Fly ash 50-70%
2. Sand 15-20%
3. Lime & Gypsum 15-20%
4. Cement 05-08%
TECHNICAL COMPARISION
  PARTICULARS   CONVENTIONAL RED BRICKS   FLYASH BRICKS
Strength 40 – 65 Kg/cm2 70 – 120 Kg/cm2
Shape & Size Non Uniform & Irregular Uniform & Regular
Water Absorption 20 – 25 % 10 – 15 %
Breakage / Wastage 8 – 10 % 3 – 4 %
Mortar Consumption High Less
Density 1500 – 1700 Kg/cm3 1200 – 1350 Kg/cm3
Nos. of Bricks for100 sq.ft. wall of 9” thick 1100 Nos 925 Nos.
Mortar Joint Thickness 15 – 18 mm 8 – 10 mm
Plaster Thickness 15 – 20 mm 10 – 12 mm

Our Products

Lorem Website

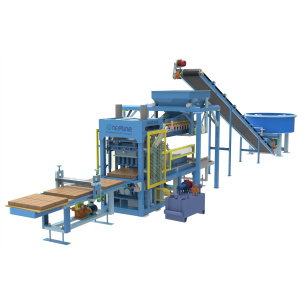

NEPTUNE VIBRO 2500

Ipsum Logo

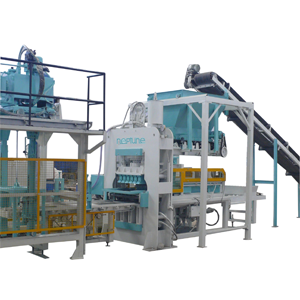

Neptune Plus Mega Series

Dolor Prints

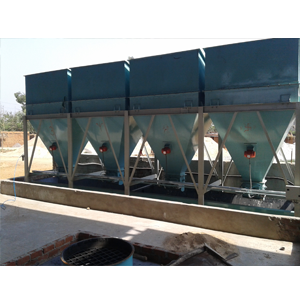

Raw Material Batching Plant

Sit Amet Website

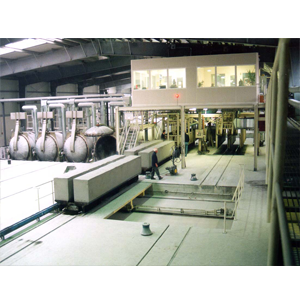

Autoclaved Aerated Concrete

Lorem Website

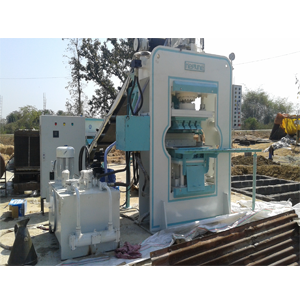

Neptune plus Hey 2000

Ipsum Logo

Neptune plus Hey 1500

Dolor Prints

"Neptune Plus" +1000 HEY

Sit Amet Website

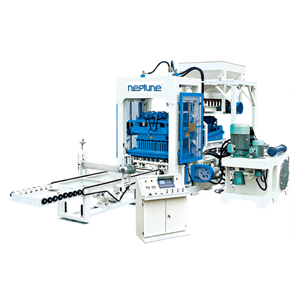

NEPTUNE VIBRO 5000
